Description
NEW RELEASE-COMING SOON. PRICE TBA.
The RGBlink mini-edge 5 Channel All-in-One Switcher is a live broadcast recording and directing station with 5 video inputs, and 8 audio inputs.
The RGBlink mini-edge 5 Channel All-in-One Switcher is a controllable live broadcast recording and directing station with 5 video inputs, 8 audio inputs, and multiple output interfaces, supporting multi-layer and mixing Control.
Key Features
- Built-in 5.5 inch LCD Screen

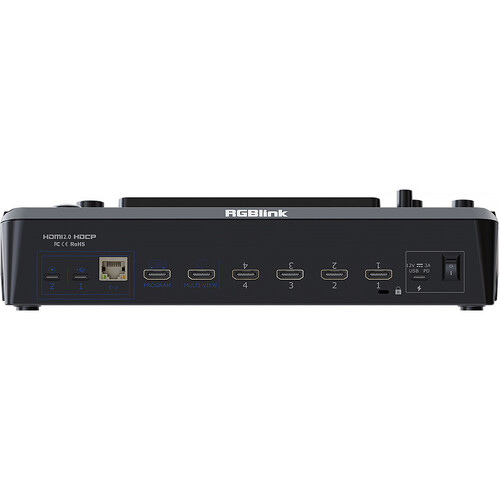

- Quad HDMI 2.0 inputs (HDCP), resolution up to 4K@60
- One USB (UVC) input supports camera source from RGBlink vue PTZ and webCAM
- Dual HDMI 1.3 outputs for monitoring of multi-window PVW, PGM or AUX
- Eight audio inputs with Four HDMI 2.0 embedded audio inputs and Four external audio inputs (one MIC, one LINE, one Bluetooth and one Type-C digital audio)
- Dual audio out jacks for listening
- Eight audio inputs allow for output of mixed audio across one or all available channels
- Web Control and monitoring, compatible with mobile devices and computers, compatible with multiple operating systems
- Simultaneous Streaming to 4 Live Streaming Platforms via RTMP(S)
- Support multi-layer overlay, layer scaling and cropping
- 17 switching effect modes
- 5-direction Joystick for Controlling up to 4 PTZ Cameras
- Support Chroma Key One-key recording.
- Recording capacity of hard drive is up to 2TB
- Save up to 10 scene presets and thumbnails for real-time full preview
- 5G/4G Smartphone Tethering for iOS and Android system
- Air cooling design to ensure 24/7 stable operation
The RGBlink mini-edge 5 Channel All-in-One Switcher is not only suitable for multi-platform live broadcasts and remote audio and video conferencing, but can also be used for various live events such as stages, education, press conferences, and sports games, while providing high-quality functions, and excellent cost performance.
The live video, audio and content inputs go to the production pipeline with multi-layer and mixing control, output by 2x HDMI, 1x UVC, and streaming to the cloud.

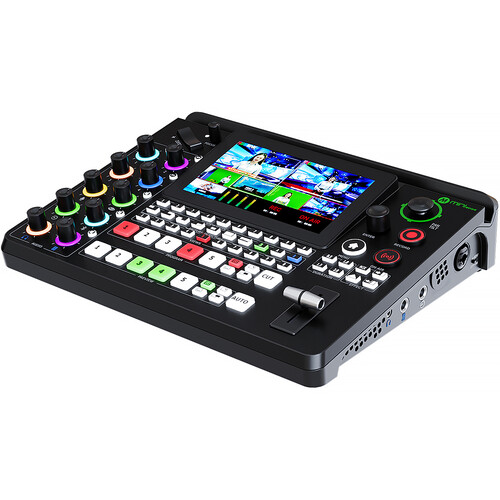

Full-featured Keyboard Controls at a Glance
The onboard 5.5 inch HD Full-colour screen monitors all input channels and output images in real-time.
Full-featured keyboard, for fast Control of any function.
Configurable HDMI Output for live presentations.
HDMI PVW port – configure for multi-view or AUX each input.
Take Full Control
Integrated PTZ Camera Control
Forget about having multiple separate Control panels for video and camera Control.
The RGBlink mini-edge 5 Channel All-in-One Switcher brings it all together, supporting industry standard VISCA protocol for PTZ Control directly from the mixer.
Control up to four separate cameras with pan, tilt, zoom, and focus.
Precise Fingertip Control
Integrated Joystick provides tactile Control for each PTZ Camera.
Used together toggle, pan, tilt, zoom, and focus from the front panel.
Joystick and toggle are additionally dynamically assigned to settings including scale, position, and crop for enhanced useability.
Pro Colour Rendering and Layers
One-Click Chroma Key
Enable presenters to be in virtual studios and environments with Chroma Key.
Select from standard key colours and enable Chroma Key directly on the RGBlink mini-edge 5 Channel All-in-One Switcher without the need for an app.
Refine Colour selection and tolerances from the touch screen to optimise.
Pro Level Audio
Capture Every Sound
With two separate insert audio ports, the RGBlink mini-edge 5 Channel All-in-One Switcher has an external balanced mic, and line level audio coverage.
All two ports accept TRS ¼in jacks, with MIC supporting direct XLR connection too.
Plus there is 48V phantom power directly from the RGBlink mini-edge 5 Channel All-in-One Switcher available on MIC, negating the need for a separate DI, and instantly making studio mics native connections as they should be.
Follow the Action & Always be In Sync
Set AFV for any HDMI embedded audio so the audio switches with the video source to PVW and PGM automatically.
Configure an audio delay for MIC inputs or a camera input to keep audio in sync with the video.
Monitor & Set Live
Pro mixer audio level controls are front and centre on mini-mx, enabling “in the mix” with full monitoring that is familiar and accessible.
Bluetooth audio input supports.
Pro Level Video
Sophisticated Multi-Layer Presentation
Assemble visuals with multiple layers of video and graphics. the RGBlink mini-edge 5 Channel All-in-One Switcher offers 2 full video layers plus a background image, and two graphic overlays from the media pool as well.
Dynamically Scalable
Each of the two assignable video layers may scaled, positioned and cropped with these placed over the background.
Multiple Layer Sophistication
As well as dual video sources, add media pool graphic overlays for lower-thirds and branding logos, and switch seamlessly between graphic elements.
Fluid Interactive Operation
Select any source or preset with control panel thumbnails and iconography that makes the RGBlink mini-edge 5 Channel All-in-One Switcher a natural and intuitive way to present and stream.
Transition Like a Pro
The RGBlink mini-edge 5 Channel All-in-One Switcher includes multiple DVE transition effects from preset to program, adding sophistication and effect.
Leverage the Power of Presets
Save and store up to 10 presets on RGBlink mini-edge 5 Channel All-in-One Switcher, allowing 1 press recall of all scene settings including PTZ focuses.
Make use of smooth transitions.
Go Remote
The RGBlink mini-edge 5 Channel All-in-One Switcher web app companion apps for laptop and mobile allow remote use from the mini-edge and the video connections.
Fully integrated with the RGBlink TAO Cloud control streams remote too with TAO Cloud.
Pro Streaming
Enhanced Streaming
H.265
Take advantage of advanced H.265 compression and encoding for higher performance streams.
Capture & Share
Connect the RGBlink mini-edge 5 Channel All-in-One Switcher to a laptop for instant recognition as a webcam to enable Capture for apps such as OBS and many more.
Share your presentation in Teams, Zoom™ or any collaboration platform.
Live Stream
Take advantage of advanced H.265 compression and encoding for higher-performance streams.
RTMP(S)
Stream up to four multiple platforms simultaneously directly over IP without a laptop.
And with TAO Cloud integrated directly into mini-mx, cloud-stream up to 32 platforms or connections at the same time.
Recording
The USB 3.0 recording output interface can be directly connected to a hard drive with a maximum capacity of 2T.
Audio and video can be imported and used with one click during video.
Finally, the mini-edge is an affordable and portable All-in-One Switcher.
