Description

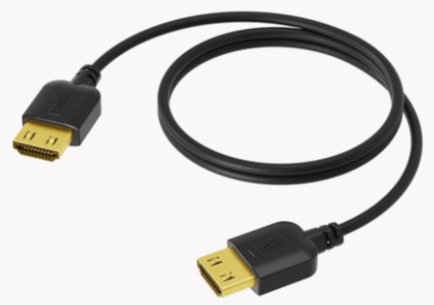

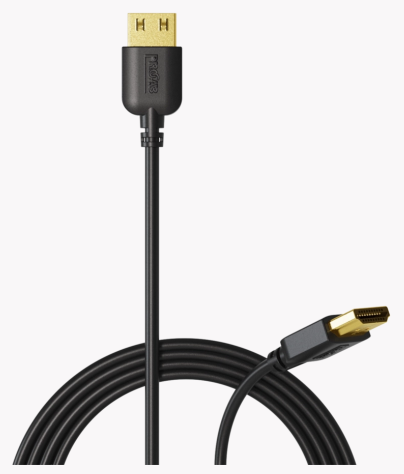

The ProCab CSV210 1.5m Slimline Video Cable – HDMI 2.0 – HDMI A Male – HDMI A Male – HighFlex™, is a Super Slim, HDMI 2.0 Cable, Available in a 1.5m Length.
The ProCab CSV210 Slimline Video Cable – HDMI 2.0 – HDMI A Male – HDMI A Male – HighFlex™, is a Super Slim HDMI 2.0 Cable, Available in a 1.5m Length.
Key Features
- AV & IT Connect Series
- HDMI 2.0 Compliant
- Data Speeds up to 18 Gbps
- Resolutions up to Ultra HD 4K 2160p (4096 x 2160) 4:4:4 at 60 Hz
- Slim Ø 4.5 mm Diameter
- Semi-Lock™ Feature with Higher Withdrawal Force
- Snagless & Compact Connector
CSV210 Series Overview
The CSV210 Series are Super Slim HDMI 2.0 Cables, available in Lengths from 0.5m up to 5m.
They are specifically designed for reliable interconnections in professional installations and applications.
The Ultra-Slim construction with a very Slim Outer Diameter offers an elegant solution for office patch usage when installing in narrow installations behind TVs or guaranteeing the best possible airflow in rack applications.
They are fully HDMI 2.0 Compliant, capable of handling a Bandwidth of up to 18 Gbps and Resolutions of up to 4K @ 60 Hz 4:4:4.
The Semi-Lock™ Connector with Gold-plated Contacts design guarantees reliability in all kinds of environments.
4K Ultra HD
HDMI Stands for High-definition Multimedia Interface and is the most common Standard for Transferring High-quality Uncompressed Digital Video and Data.
All modern Video Projectors, Computers and Monitors are compatible with this Transfer type.
An HDMI Cables can differ in Speed what makes them to achieve Higher Resolutions.
The Resolution of 4K is up to 4 times as High as 1080p.
This Resolution consists of a Horizontal Resolution of 4000 Pixels and a vertical Resolution of 2000 Pixels.
Technology
Cable Properties
Semi-Lock™
Unfortunately it is still common for standard HDMI Cables to become detached or loosened and create intermittent up to complete signal loss, to avoid these unwanted disconnections the CLV210A has a smart Semi-Lock™ feature specially designed to up the withdrawal force for unplugging the Connector.
- Supported standards: High-speed HDMI with Ethernet
- Supported Colours: 16/24bit RGB/YUV, Deep Colour, x.v. Colour, DD+
- Supported Audio standards: ARC, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DVD Audio, …
- Supported other standards: HDMI Ethernet Channel (HEC), 3D, HDCP, CEC, 4K2K (2160i/p), Full HD (1080i/p), HD ready (720i/p), SDTV (480i/p)
Specifications
| Application | AV & IT |
| Series | Connect Series |
Physical Characteristics
| Inner Conductor | American Wire Gauge | 34 AWG (≤ 2 m) |
| 32 AWG (3 m) | ||
| Outer Jacket | Material | PVC 3.8 mm (Ø) (≤ 2 m) |
| PVC 4.5 mm (Ø) (3 m) | ||
| Colours | Black |
