Ricoh WG-80 Intrinsically Safe Digital Camera

Note: Please allow for seven days from the time of order to certification.

The Ricoh WG-80 Intrinsically Safe Digital Camera is designed for every imaginable Outdoor Environment, including Underwater Photography.

The units undergo sealing after the alteration of the internal fuses and then sent for testing prior to the certificate being issued

The equipment as described above and in MASC report

has been allocated the rating Explosion Protected Ex ma s I/IIC

Ma Gb and Ex ma s IIIC T135°C Da utilizing the SANS/IEC Standards:

• SANS (IEC) 60079-0:2019 General requirements

• SANS (IEC) 60079-33:2013 Equipment protected by special protection “s”

• SANS (IEC) 60079-18:2016 Equipment protected by encapsulation “m”

• SANS (IEC) 60079-31:2014 Equipment dust ignition protection by enclosure “*”

• ARP 0108:2014 Regulatory requirements for explosion protected apparatus

CLICK HERE for more information.

R19,858.00

In stock

Description

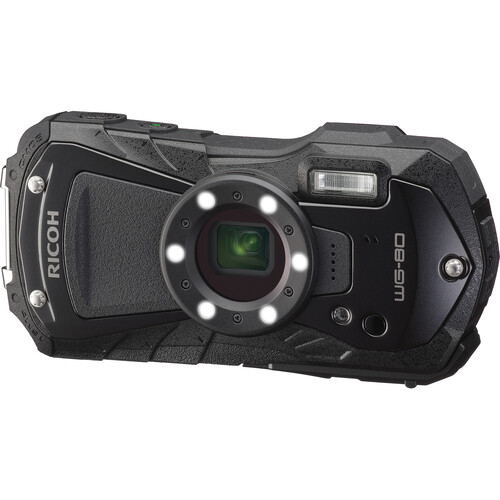

Ricoh WG-80 Intrinsically Safe Digital Camera

The Ricoh WG-80 Intrinsically Safe Digital Camera is designed for every imaginable Outdoor Environment, including Underwater Photography.

The Ricoh WG-80 Intrinsically Safe Digital Camera will take your outdoor and adventure photography to the next level, and is designed for every imaginable Outdoor Environment, including Underwater Photography at depths of 46′ for as long as two hours.

Key Features

  • For Outdoor and Underwater Photography
  • 2.7″ LCD Monitor with AR Coating
  • 5X Optical Zoom Lens
  • Built-in Ring Light
  • Full HD Movie Recording
  • 6 LED Macro Lights on Lens Barrel
  • Impact, Freeze, and Shockproof
  • Waterproof
  • Triple Anti-Shake Protection

The Ricoh WG-80 Intrinsically Safe Digital Camera is also a great Camera for construction worksites, and has a rugged and durable body that is Impact, Freeze , and Shockproof.

In addition to its rugged design, the Ricoh WG-80 Intrinsically Safe Digital Camera has a CMOS back-illuminated image sensor with high optical efficiency and approximately 16 effective megapixels.

It also features a high-performance imaging engine, a 5X Optical Zoom Lens, and a large, wide-frame LCD Monitor.

This camera offers enhanced underwater modes for still photography and video, and its Built-in Ring Light has adjustable illumination levels.

Turn on the 6 LED Macro Lights around the Lens Barrel to create a three-dimensional effect or expand your range of shooting expressions.

Tough Body Construction

The solid, airtight body of the WG-80 is not only Waterproof down to a depth of 46 feet for up to two hours of continuous operation (equivalent to IPX 8 or JIS Class 8), but is also shockproof against falls from a height of 5 feet, dustproof (equivalent to IPX 6 or JIS Class 6), freeze-proof to temperatures as low as -10°C / 14°F, and crushproof against weights up to 100kgf (kilogram force).

Thanks to this heavy-duty construction, the camera performs dependably even in harsh, demanding outdoor conditions.

Exceptional Image Quality

The WG-80 is equipped with a back-illuminated CMOS image sensor, which assures high-sensitivity, low-noise characteristics, and high-speed readout of image data signals.

Coupled with a high-performance imaging engine, this image sensor delivers a top sensitivity of ISO 6400 and super-high-resolution images with approximately 16 effective megapixels.

It has advanced image-processing functions, made possible by the latest super-resolution technology, to assure sharp, clear, high-resolution images.

It even offers such innovative features as Handheld Night Snap mode, which automatically captures several images of the same nighttime scene to produce a single, blur-free, composite image from them.

Six Macro Lights to Assist Close-Up Shooting, with Various Functions

Ideally positioned around the circumference of the Lens Barrel for macro shooting, six LED macro lights allow the WG-80 to provide bright, uniform illumination on a subject when the Digital Microscope mode is selected.

Providing the maximum illumination intensity (almost twice that of its predecessor) and a five-step intensity adjustment function, this six-light unit enables the photographer to effortlessly optimize the close-range flash photography based on the subject or creative intention.

To minimize camera shake and subject shake, the Instant Illumination Enhance function allows for the use of a higher shutter speed by automatically raising the discharge level of the macro lights at the moment of shutter release.

The macro lights also provide other useful functions, such as a Self-Portrait Assist mode, which uses the blink of an LED lamp to check if the subject’s face has been safely captured within the picture frame, and the LED Lighting mode, which uses the macro lights to light up in the dark.

Underwater Shooting Mode

Specifically designed for underwater photography, the Underwater and Underwater Movie shooting modes are programmed to optimize color and contrast, based on the data of images captured under the water.

These modes deliver sharp, true-to-life images by enhancing shades of red which are lost in underwater photography, while effectively compensating for the loss of contrast caused by the diffusion of light in water.

In Underwater mode, the Flash Off + Flash On option allows the user to consecutively capture two images with a single shutter release – one without flash and another with flash.

5X Optical Zoom Lens with a 28mm Wide-Angle Coverage

The WG-80 features a high-performance, five-times optical zoom lens with focal-length coverage from 5mm to 25mm (equivalent to approx. 28mm to 140mm in the 35mm format) to accommodate a wide range of scenes and subjects, including sweeping landscapes.

It also provides other convenient shooting functions, such as a macro mode to capture dramatic close-up images from a minimum focusing distance of a mere one centimeter; an Intelligent Zoom function to extend the zoom range to approximately 36 times (equivalent to 1008mm in the 35mm format) without compromising image quality, for superior telephoto photography; and an interval shooting mode, which comes in handy for fixed-point observation.

Full HD Movie Recording for Extended Shooting of High-Quality Movies

The WG-80 provides Full HD Movie Recording employing the H.264 Recording format.

Users can capture high-quality, extended movie clips (1920 x 1080 pixels, 16:9 proportions) at a frame rate of 30 frames per second.

To add some creative touches to your Movie Recording, there is a high-speed camera function for slow-motion playback of captured movie clips, and an interval movie function.

A micro-HDMI terminal (Type D) is also provided on the camera body for simultaneous output of Full HD Movie clips and sound to external audio-visual devices.

Triple Anti-Shake Protection to Prevent Blurred Images in All Applications

Pixel Track SR Mechanism: When Recording still images, this advanced shake-reduction mechanism effectively compensates for camera shake by digitally processing affected images.

Digital SR Mode: When the camera detects low-lighting conditions in still-image shooting, this mode automatically raises the sensitivity to as high as ISO 6400, making it possible to use a higher shutter speed and effectively minimize the adverse effect of camera shake and subject shake when dealing with poor lighting conditions.

Movie SR Mode: During movie Recording , this mode effectively compensates for the misalignment of images caused by camera shakes through the use of exclusive software to produce beautiful, blur-free movie clips.

2.7″ LCD Monitor with the Outdoor View Setting Mode

The WG-80 comes equipped with a 2.7″ LCD Monitor with horizontally extended 16:9 proportions and approximately 230,000 dots.

The Monitor‘s AR (Anti-Reflection) coating minimizes annoying glare and reflections to ensure a sharp, clear on-screen image even in the harsh sunshine often encountered during outdoor shooting.

It also comes equipped with such convenient features as Outdoor View Setting mode, which easily sets the optimum Monitor brightness level for a given lighting condition.

Other Features

  • High-speed Face Detection function to capture as many as 32 faces in focus in approximately 0.03 seconds (minimum);
  • Smile Capture function to automatically release the shutter when the subject’s smile is detected
  • Outdoor-friendly Style Watch function to display the time on the LCD Monitor, using an extended push of the OK button when the camera’s power is turned off
  • Delay-free, push-button start of the playback mode, using an extended push of the playback button
  • Auto Picture mode to automatically select the most appropriate shooting mode from 16 different scene modes
  • A choice of 12 digital filters

UPC: 027075304437

In the Box

  • Ricoh WG-80 Intrinsically Safe Digital Camera
  • Rechargeable Li-Ion Battery D-L192
  • Power Adapter AC-U2
  • Power Plug
  • USB Cable I-USB157
  • Strap O-ST104
  • Macro Stand O-MS1
  • Limited 1-Year Manufacturer Warranty

Not in the Box

Essential Memory Cards (Not Included)

CLICK HERE for more information.

Specifications

Sensor Resolution
Effective: 16 Megapixel
Image Sensor
1/2.3″-Type CMOS
Image Stabilization
Digital
Focal Length
5 to 25mm (35mm Equivalent: 28 to 140mm)
Optical Zoom
5x
Maximum Aperture
f/3.5 to 5.5
ISO Sensitivity Range
125 to 6400 in Auto Mode
Internal Recording Modes
H.264
1920 x 1080
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Display Size
2.7″
Built-In Flash/Light
Yes, Flash Only
Battery Type
1x D-L192 Built-in Rechargeable Lithium-Ion (Approx. 300 Shots)
Dimensions (W x H x D)
4.8 x 2.4 x 1.2″ / 121.9 x 61 x 30.5 mm
Weight
6.8 oz / 193 g (With Battery, Recording Media)
Imaging
Sensor Resolution
Effective: 16 Megapixel
Image Sensor
1/2.3″-Type CMOS
Image Stabilization
Digital
Lens
Focal Length
5 to 25mm (35mm Equivalent: 28 to 140mm)
Optical Zoom
5x
Digital Zoom
7.2x Maximum
7.5x Optimized
Maximum Aperture
f/3.5 to 5.5
Focus Range
1.6′ to Infinity / 0.5 m to Infinity
Optical Design
11 Elements in 9 Groups
Exposure Control
Shutter Speed
Electronic Shutter
1/4000 to 1/4 Second
Mechanical Shutter
1/4000 to 1/4 Second
ISO Sensitivity Range
125 to 6400 in Auto Mode
Metering Method
Center-Weighted Average, Multi, Spot
Exposure Compensation
-2 to +2 EV (1/3 EV Steps)
White Balance
Presets: Daylight, Fluorescent, Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (White), Manual, Shade, Tungsten
Still Image Capture
Aspect Ratio
1:1, 16:9
Image File Format
JPEG
Video Capture
Internal Recording Modes
H.264
1920 x 1080
IP Streaming
No
Interface
Media/Memory Card Slot
Single Slot: SD/SDHC/SDXC
Internal Memory
68 MB
Video I/O
1x Micro-HDMI Output
Audio I/O
No
Power I/O
No
Other I/O
1x Micro-USB (USB 2.0) Data Output
Wireless
No
Global Positioning (GPS, GLONASS, etc.)
No
Monitor
Display Size
2.7″
Viewfinder
Diopter Adjustment
Yes
Flash
Built-In Flash/Light
Yes, Flash Only
Flash Modes
Flash On, Off, Red-Eye Reduction
Effective Flash Range
ISO Auto
0.66 to 18′ / 0.2 to 5.5 m (Wide)
0.66 to 11′ / 0.2 to 3.4 m (Telephoto)
External Flash Connection
No
Environmental
Environmental Protection
Advertised as Submersible to 45.9′ / 14 m
*Test Methodology Not Supplied
Shockproof
5.2′ / 1.6 m
Crushproof
220.46 lbf / 100 kgf
General
Battery Type
1x D-L192 Built-in Rechargeable Lithium-Ion (Approx. 300 Shots)
Dimensions (W x H x D)
4.8 x 2.4 x 1.2″ / 121.9 x 61 x 30.5 mm
Weight
6.8 oz / 193 g (With Battery, Recording Media)
Packaging Info
Package Weight
1.05 lb
Box Dimensions (LxWxH)
7.4 x 5.8 x 3.3″
